SSI SMART SENSORS INC 1250 RTD 1250-RP-14-M-6.5-R-144-MT-1-A(144)-CG12-SA12-G A-FW

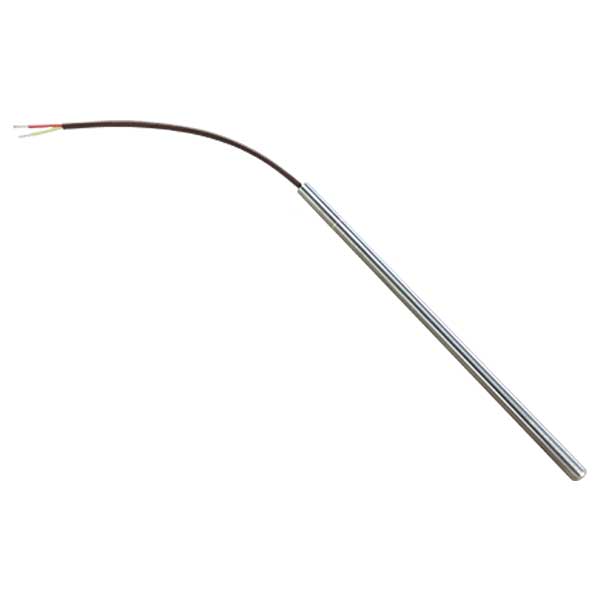

SSI Smart Sensors Inc 1250 RTD with Leads

Model: 1250-RP-14-M-6.5-R-144-MT-1-A(144)-CG12-SA12-GA-FW

This email address is being protected from spambots. You need JavaScript enabled to view it. for the best pricing and lead time on this model.

kWt6N9ocPozedasjfkbyNistt0vStA1T6Gbn5W9JiXI

Model String =
1250-RP-14-M-6.5-R-144-MT-1-A(144)-CG12-SA12-GA-FW
1250 (Product Code) = Model 1250 RTD with Leads
RP (RTD Type) = 100 Ohm Pt. .00385 Coeff.
14 (Sensor OD) = 1/4" (6.4mm)
M (Element Construction) = Single Mineral Insulated up to
900F (482C)
Sheath Length (inches) = 6.5
R (Sheath Material) = 316SS
Lead Length (inches) = 144
MT (Lead Insulation) = Multi Strand (flexible) Teflon
1 (Termination Type) = Bare Ends
A (Accessories) = Armor (Stainless Steel)
CG12 (Accessories) = Weather Tight Fitting (1/2" NPT)
SA12 (Accessories) = Spring Assy w/ Hex Fitting, 1/2” NPT
304SS
GA (Accessories) = Class A Tolerance Per DIN EN 60751
FW (Accessories) = Four Wire Element RTD
None (Sensor Calibration) = (No Calibration)
Armor Length (inches) = 144
